FRB-50 PTFE Steel bronze powder with PTFE

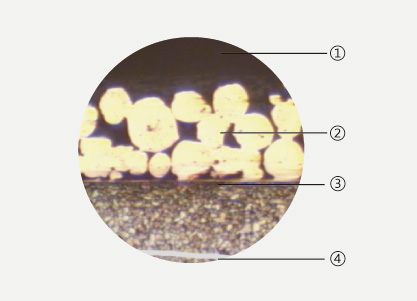

Structure

1. PTFE/Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxidetype solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm,provides Max. thermal conductivity away from the bearingsurface,also serves as a reservoir for the PTFE-Fibremixture.
3. Low-carbon steel,gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

Features

Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary and oscillating movement. Very high chemical resistance, low absorption of water and swelling, also performs very good lubrication feature, the bronze backing provides the improved corrosion resistance comparing with FRB-50.

Tech. Data

Max. load Static 250N/mm2
Very low speed 140N/mm2
Rotating oscillating 60N/mm2
Max. PV dryrunning Short-term operation 3.6N/mm2*M/3
Continuous operation 1.8N/mm2*M/3
Temp. limit -195℃~+280℃
Friction coefficient 0.03~0.20
Max. speed Dry running 2m/s
Hydrodynamic operation >2m/s
Thermal conductivity 42W(m*K)-1
Coefficient of thermal expansion 11*10-6*K-1

Typical Applications

This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earthmovers, graders and other construction, auto machines, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, textile equipment, tools...etc.

Download

FANRONG to provide electronic catalog for all models.
