Home / Products / FRB-40 PTFE Steel Bronze Powder with PTFE/Fibre Dry Bearings

Products

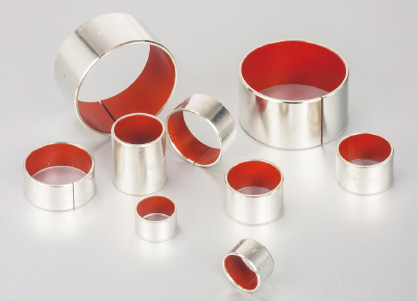

FRB-40 PTFE Steel Bronze Powder with PTFE/Fibre Dry Bearings

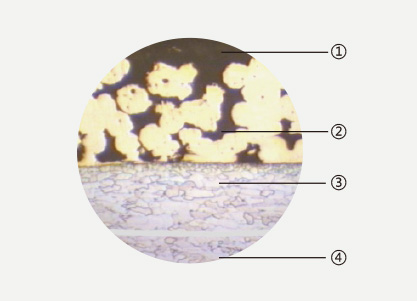

Structure

1. PTFE/Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE mixture.
3. Steel backing, provides high load carrying capacity, e x c e l l e n t h e a t dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

Features

Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The FRB-40 improved the friction and much good wear resistance over the common FRB-50 range under lubricated operation.

Tech. Data

Max. load Static 250N/mm2
Very low speed 140N/mm2
Rotating oscillating 60N/mm2
Max. PV dryrunning Short-term operation 3.6N/mm2*M/3
Continuous operation 1.8N/mm2*M/3
Temp. limit -195℃~+280℃
Friction coefficient Dry running 0.08~0.20
Hydrodynamic operation 0.02~0.08
Max. speed Dry running 2m/s
Hydrodynamic operation >2m/s
Thermal conductivity 42W(m*K)-1
Coefficient of thermal expansion 11*10-6*K-1

Typical Applications

FRB-40 is developed for high duty, oil lubricated, hydraulic applications...Automotive suspension struts, shock absorbers guide bushing, hydraulic cylinders, gear pumps, motors, axial and radial piston pumps & motors. FRB-40 is designed mainly for using under lubricated conditions and it performs excellent wear resistance and low static/dynamic friction coefficient.

Download

FANRONG to provide electronic catalog for all models.
