Home / Products / FRB-FZ Series Ball Retainer

Products

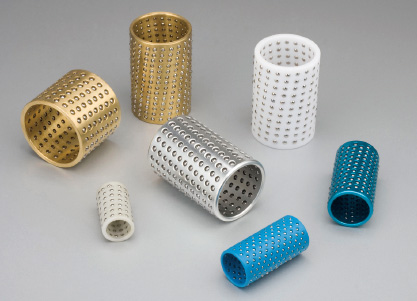

FRB-FZ Casting the ultimate product

Advantages and Uses Having relative motion of the hole and shaft there is a certain gap, and the motion between the bore and the shaft friction coefficient is large, using a ball retainer, so that the shaft and the hole does not directly contact, but rather through the middle by the trace Yingof the ball, and thus movement of high precision, rolling friction instead of sliding friction, rolling flexible, low coefficient of friction, long service life in both rotating and moving occasion, with no oil or fuel sleeve and the shaft to matchAlthough able to meet, but the motion accuracy, with rolling bearings, can only meet the axis of relative rotation of the occasion, and the steel ball cage, can meet the above two conditions, has been widely used in Die frame, high-precision machine tools,machine tool accessories, CNC grinding machine tailstock, independent guide column, textile machinery and require high-precision axial diameter of the same sports occasions.

Assembly requirements

1、Bushing
Material GCR15、YB9 Heat Treatment,Hardness HRC62-66,Surface roughness is 0.05
2、Axis
Material GCR15、YB9 Heat Treatment,Hardness HRC62-66,Surface roughness is 0.05
3、Assembly dimensions
Dmax+2d-Dmin=0.01~ 0.02mm

Download

FANRONG to provide electronic catalog for all models.
