FRB-20 POM Steel Bronze Powder with POM Marginal Bearings

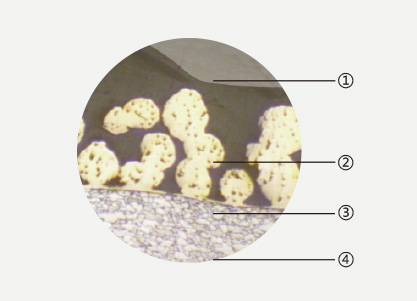

Structure

1.POM thickness 0.30~0.50 mm, it provides high wear resistance and low friction even with only minute volume of lubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the resin mixture.
3. Low-carbon steel, provides exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

Features

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.

Tech. Data

Max. load Static 250N/mm2
Very low speed 140N/mm2
Rotating oscillating 70N/mm2
Dry running 3N/mm2*m/3
Temp. limit -40℃~+110℃
Friction coefficient 0.05~0.20
Max. speed Dry running 2m/s
Hydrodynamic operation >2m/s
Thermal conductivity 4W(m*K)-1
Coefficient of thermal expansion 11*10-6*K-1

Typical Applications

Recommended for applications involving intermittent operation or boundary lubrication... Automotive: suspension joints, kingpin assemblies and stub axles of tucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fair leader rollers...
