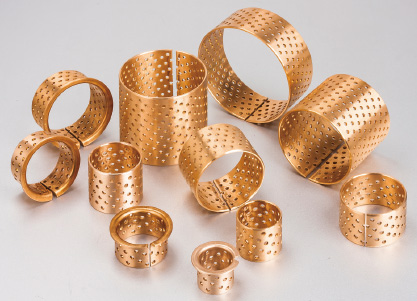

FRB-092 Bronze Wrapped Bearings

Structure The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes of FRB-090 are fitted with diamond shaped lubrication indents in the bearing surface. The standard sizes of FRB-092 incorporate holes, which are dispersed in a special way over the whole bearing surface.These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Tech. Data

Max. load Static 120N/mm² Hardness HB HB 110-150
Dynamic 40N/mm² Elongation 40%
Max. speed (Lubrication) 2m/s Temp. -100℃~+200℃
Max. PV 2.8N/mm²*m/s Friction coefficient 0.08~0.25
Tensile strength 450N/mm² Thermal conductivity 60W(mk)-1
Alloy hardness 250N/mm² Coef. of thermal expansion 15x10-6k-1

Available in the form

Available in the form Tolerance
Straight sets, flange, thrust washers, skateboards and other non-standard parts and other products Generally recommended housing bore tolerance H7, shaft tolerance f7

Download

FANRONG to provide electronic catalog for all models.
